The Honeywell Ensemble system utilizes cloud-based software and a mobile application to wirelessly collect engine performance data. Performance data is gathered from the Engine Control Unit (ECU) via the EDG-100 (Engine Data Gateway) and transmitted to platforms like Honeywell Forge and CAMP systems. This advancement simplifies MSP usage, provides crucial engine performance insights, and helps operators avoid unexpected maintenance downtime.
Automatic engine data downloads for simplified analysis, compliance, and optimization.
Ongoing engine performance monitoring for early detection and proactive maintenance of potential issues.
Simplified recordkeeping with one of the first digital logbooks in business aviation.
StandardAero’s Maintenance and Installation professionals are here to support your EDG-100 installation needs.

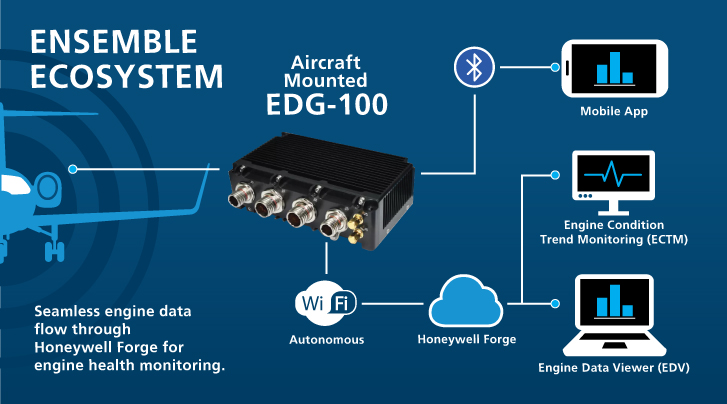

Honeywell Ensemble is enabled by installation of a Honeywell Engine Data Gateway (EDG-100) that collects aircraft engine data and transmits it via Wi-Fi to Honeywell Forge and a designated engine trend monitoring provider, allowing for engine condition analysis after each flight.
Â
StandardAero can install the EDG-100 via STC (Supplemental Type Certificates) on the platforms listed below. Customers will receive an online user guide, an installation kit, and STC documentation.
| ENGINE | AIRFRAME | STC |
|---|---|---|
| AS907-1-1A / THF7000 | Challenger 300 | STC-02765LA |
| AS907-2-1A / HTF7350 | Challenger 350/3500 | STC-02765LA |
| AS907-3-1E / HTF7500E | EMB-545-Legacy 450/Praetor 500 & EMB-550-Legacy 500/Praetor 600 | STC-02816LA |
| AS907-2-1S / HTF7700L | Cessna CE-700 Longitude | STC-02812LA |
Â
Ensemble and EDG-100 installation eligibility is open to all operators in Honeywell’s Engine MSP or MSP Gold programs prior to contract initiation, renewal or transfer. If not previously installed, EDG-100 installation is required at contract initiation, renewal or transfer. A contract amendment is required to incorporate Ensemble at no additional cost.
Â
Typical installation takes 2-3 days.
Installation kit (harness, bracket and EDG) is included and will be installed by the owner MRO. The customer will receive a user guide (online) and STC document (RTU letter).
Reach out to StandardAero first. We will work to obtain the MSP approval on your behalf and schedule the installation with you. Once installation is complete and the EDG shows it is communicating, the support transitions to Honeywell.
Review the user manual, and if still unable to resolve, contact Honeywell at 800-601-3099 or 602-365-3099, press 2 for Technical Support and press 1 for Forge Services and Connectivity.
